How to Choose the Right Electric Capstan Winch for Your Needs

When you choose an electric capstan winch, look at load capacity, power source, rope compatibility, and safety features. Think about your main job. You might work in marine, construction, or need a boat anchor winch. Electric winches can do hard jobs. They are reliable for daily use.

Electric Capstan Winch Basics

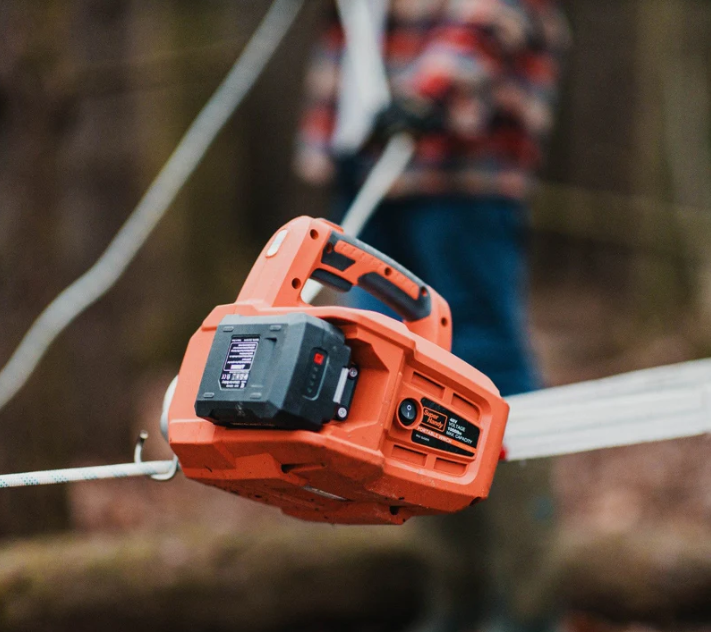

What Is an Electric Capstan Winch

You may ask how an electric capstan winch is different. This tool has a drum that stands up straight and spins. You wrap a rope or cable around the drum. The winch pulls the rope by using friction, not by winding it up. The rope does not pile up on the drum. You can keep pulling for as long as you need. Regular electric winches have a drum that lays flat. The electric capstan winch gives steady pulling power. It is good for jobs that need the rope to move all the time. People use it for things like a boat anchor winch or anchor retrieval system.

The main parts of an electric capstan winch help you work better:

• The motor gives power to the winch.

• The gear train sends power to the drum.

• The drum turns and pulls the rope.

• The cable wire connects to what you want to move.

Main Uses and Benefits

You can use an electric capstan winch for many jobs. Most people use it to lift, pull, or as a boat anchor winch. If you need to pull a heavy anchor or move gear on a boat, this winch is a good pick. It is also great for anchor retrieval system setups. It gives you smooth and steady pulling.

Tip: Electric winches help you save time and energy. They are easier to use than manual winches.

Here’s a quick look at why electric capstan winches are special:

Boat Anchor Winch Applications

If you spend time on a boat, you know a good boat anchor winch is important. An electric capstan winch makes handling your anchor easy and safe. You wrap the rope around the drum and press a button. The winch lifts the anchor for you. This works well for an anchor retrieval system. You can drop or lift your anchor without working hard. Many boaters pick electric winches for their anchor systems. They give you smooth control and help keep you safe.

Choosing Winch Power and Features

Assessing Load and Application

When you start choosing winch power, you need to know how much weight you want to move. Always figure out the heaviest load you might pull or lift. Then, add a safety margin. Experts recommend picking a winch with a capacity at least 1.5 times your maximum load. For example, if your anchor weighs 500 pounds, you should choose a winch rated for at least 750 pounds. This extra power helps you handle unexpected resistance, like mud or strong currents.

You also need to think about the environment. If you work on a boat, friction from water and mud can make the job harder. Use this formula to help you:
Total Line Pull = Weight + (Friction Coefficient × Weight)
This formula adds friction to your load, so you get a more accurate number for your winch needs.

Don’t forget to check how you plan to use the winch. If you need to pull heavy loads all day, you might want to look at hydraulic winches. These winches work well for tough jobs and can run for a long time without overheating. If you only need to use the winch sometimes, electric winches are easier to install and maintain.

Tip: Always check the mounting spot. Make sure it’s strong and does not move when you pull a heavy load. If the winch rocks or shifts, you need to fix the mount before you use it.

Key Features of Electric Winches

When you look at electric winches, you should focus on a few key features:

• Motor Power: Most commercial electric capstan winches have motors around 1000 watts. This power level works well for many marine jobs.

• Line Speed: Faster line speed means you can pull or lift things quicker. Think about how fast you need the job done.

• Braking System: A good brake keeps your load from slipping. Look for winches with strong, precise brakes.

• Control Options: Some winches come with remote controls or emergency stop buttons. These features help you stay safe and work from a distance.

• Safety Equipment: Modern winches often have limit switches, overload protection, and emergency stops. These features keep you and your gear safe.

Here’s a quick table to compare two popular commercial electric winches:

If you need to run your winch all day or in harsh places, hydraulic winches might be a better fit. They handle bigger loads and don’t overheat as fast as electric winches. Hydraulic winches are common in construction, offshore work, and heavy lifting. They need more complex installation, but they give you continuous pulling power.

Note: Electric winches are lighter and easier to move. Hydraulic winches are heavier but work better for tough, non-stop jobs.

Rope and Drum Compatibility

The rope you use with your winch matters a lot. Most electric capstan winches work best with three-strand rope. This type of rope grips the drum well and gives you smooth pulling. Many winches also let you use a chain-rope combo, which is great for marine jobs.

The material and construction of your rope affect both safety and how well your winch works:

• Synthetic fiber ropes can lose strength if they get too hot from friction.

• Braided ropes are stronger and stretch less than twisted ropes.

• Shock loads can break ropes, even if you stay under the rated limit.

• Always store ropes away from sunlight, chemicals, and heat.

• Avoid knots. Knots can cut rope strength in half. Use splices instead.

Safety Tip: Inspect your rope often. Look for signs of wear, cuts, or heat damage. Replace ropes that look worn out.

When you pick a rope, check the winch drum size. The rope must fit the drum and match the winch size. If the rope is too thick or too thin, it won’t grip well, and you could lose pulling power.

Safety and Maintenance

Safety should always come first. Modern electric winches have many safety features, like:

• Limit switches to stop the winch before it overloads.

• Emergency stop buttons for quick shutdown.

• Strong brakes to hold the load steady.

• Guards to keep hands and clothes away from moving parts.

You should also follow these safety rules:

• Always use the right rope for your winch.

• Stand to the side, not in line with the rope, when you use the winch.

• Never go over the winch’s rated load.

• Wear gloves and other safety gear.

Regular maintenance keeps your winch working well. Check the mounting bolts and welds. Grease the shaft every month, especially if you use the winch on a boat. Inspect the rope and drum for damage. If you see any problems, fix them before you use the winch again.

Common Mistake: Many people pick the wrong winch size or forget to check the mounting spot. Always double-check your numbers and your setup before you buy or use a winch.

If you need to handle very heavy loads or work in tough places, hydraulic winches are the top choice. They can pull several tons and work all day without stopping. Electric winches are better for lighter jobs and places where you have easy access to power.

When you follow these steps, you get maximum cranking efficiency and keep your winch running safely for years.

You can pick the right electric capstan winch by following a few simple steps. First, think about your needs and check the winch’s power and features. Ask practicing yachtsmen or manufacturer consultants for advice. Look at top-rated models like the PCW3000-Li-A. For ongoing help, use manuals, customer support, or social media. If you need more power, hydraulic winches might suit you.
